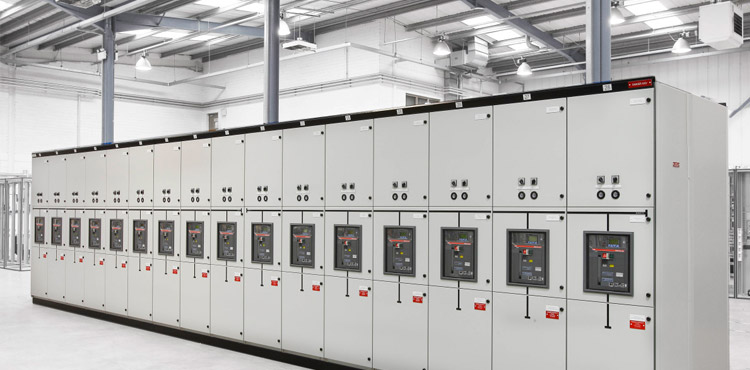

Switch Gear

FLP/WP SWITCH GEAR

  • Type of Protection: Flameproof (Explosion proof) Ex-d,
  • Area Classification: Zone 1 & 2,
  • Gas Groups: I, IIA, IIB and IIC (Please refer detailed product specification),
  • IP Protection: Minimum IP 55 or IP 65/66,
  • Apparatus standard: For Ex-d - IS 2148/1981 (Re-certification based on IEC 60079 series is under process),
  • Material: Cast Aluminium Alloy LM-6,
  • Finish: Corrosion Resistant Epoxy paint Shade 631 of IS 5,
  • Glass: Heat and Impact Resistance and Toughened Glass,
  • Hardware: All flame path - SS Allen Bolt or threaded. All other SS,
  • Gasket:Endless Neoprene minimum 3 mm dia,
  • Mounting: Wall / Structure mounting arrangement using Bolt of minimum M8.
  • Voltage: 50 Hz AC supply I or III phase Maximum 500V,
  • Cable Entry Size / No.: Based on Equipments various size and Quantity in BSCon. Thread,
  • Equipment Type: Control Station like - Push Button with or without Indicator / Selector Switch / Measuring Instruments, Limit Switch, Gong Bell, Hooter, Direct ON Line Starter, Switch (ON/OFF, Reversing, Change Over, and Selector), Switch Fuse Unit etc.,
  • Earthing: External 2 Nos. of size M6 & Internal 1 No. of size M6,
  • Wire Size: As per current Rating minimum 1.5 sq. mm. Cu flexible PVC Insulated,
  • Accessories: (OPTIONAL) Cable Gland, Stopping Plug and Mounting Hardware
